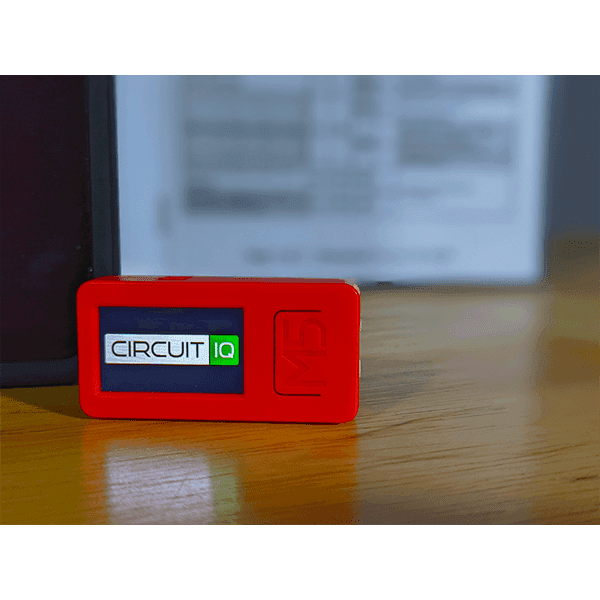

CircuitIQ - Panel Mapping

App controlled Circuit Mapping System

Locating circuits is time consuming because of poorly labelled electrical panels & a lack of proper site documentation. Manually typing labels can be cumbersome and painfully redundant. Electrical records are prone to being out of date, hard to read, and insufficiently detailed or missing altogether. It doesn’t have to be this way anymore. We can help you recapture the right information needed to complete the job fast.

How does CircuitIQ work?

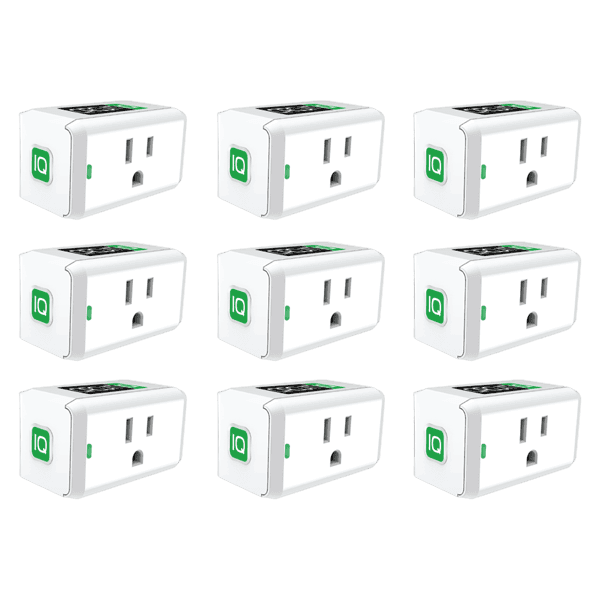

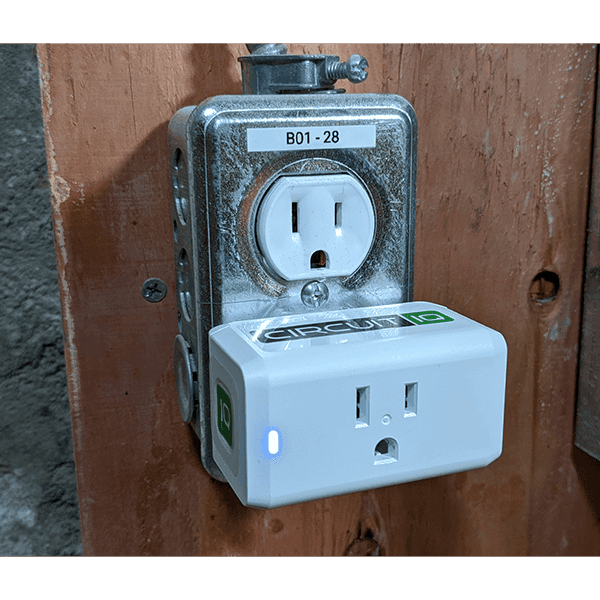

  1. You plug the mappers into each of the receptacles.
  2. Then you cycle each of your breakers on the Electrical
  3. The CircuitIQ builds a digital map of the circuit and outlets on the job site

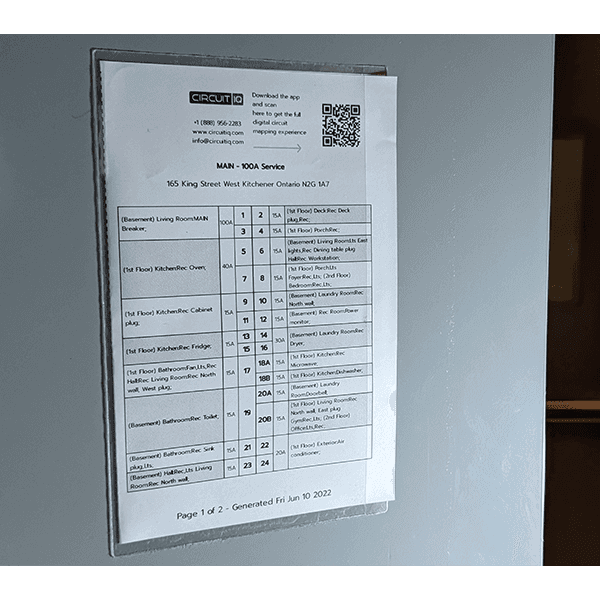

  4. Scan a QR code that can be applied to your electrical panel for future reference and wire schematics
  5. Now you know the layout and loads of your circuits
