Wire Waffle - Multiple NM Cable Connector
Multiport NM Cable Connector/Fitting

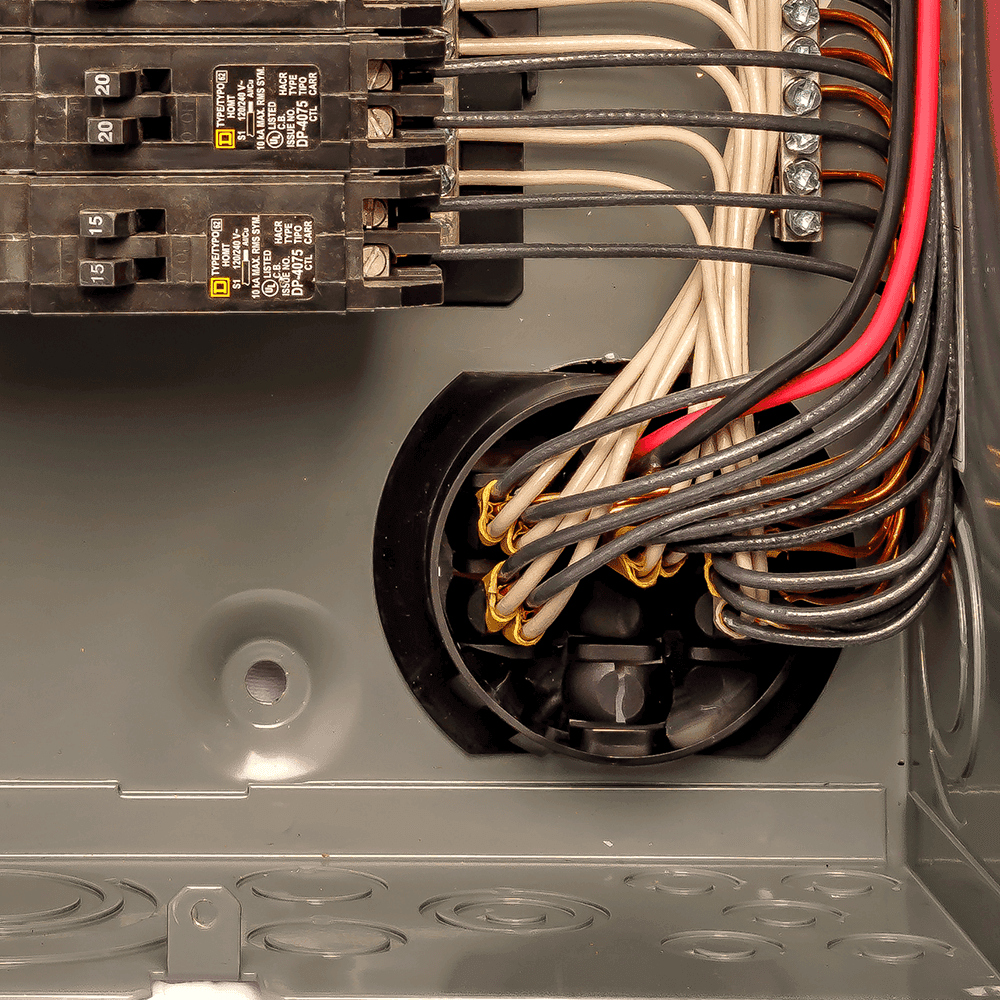

Installed in 2.5ā panel knockouts to connect up to 16 different cables through a single hole. Cut labor time down by reducing the number of KOāS electricians will have to open. This one-of-a-kind connector will reduce wear and tear on tools, clean up panels, make panel upgrades significantly easier, reduce damage to walls, and satisfy code.

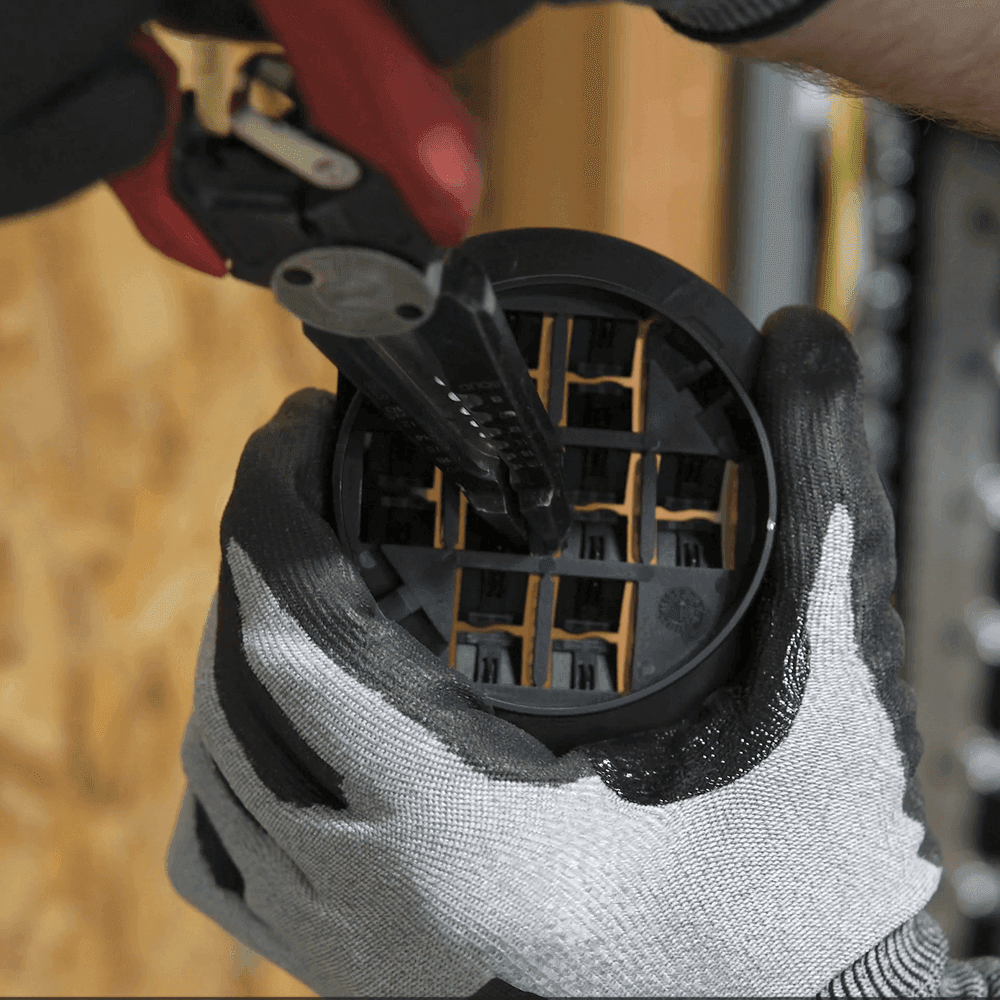

Snap the Wire Waffle into a panel knockout from the inside of the panel to secure all cables with minimal stress and effort. Perfect for performing a panel change in a finished wall without damaging the drywall.

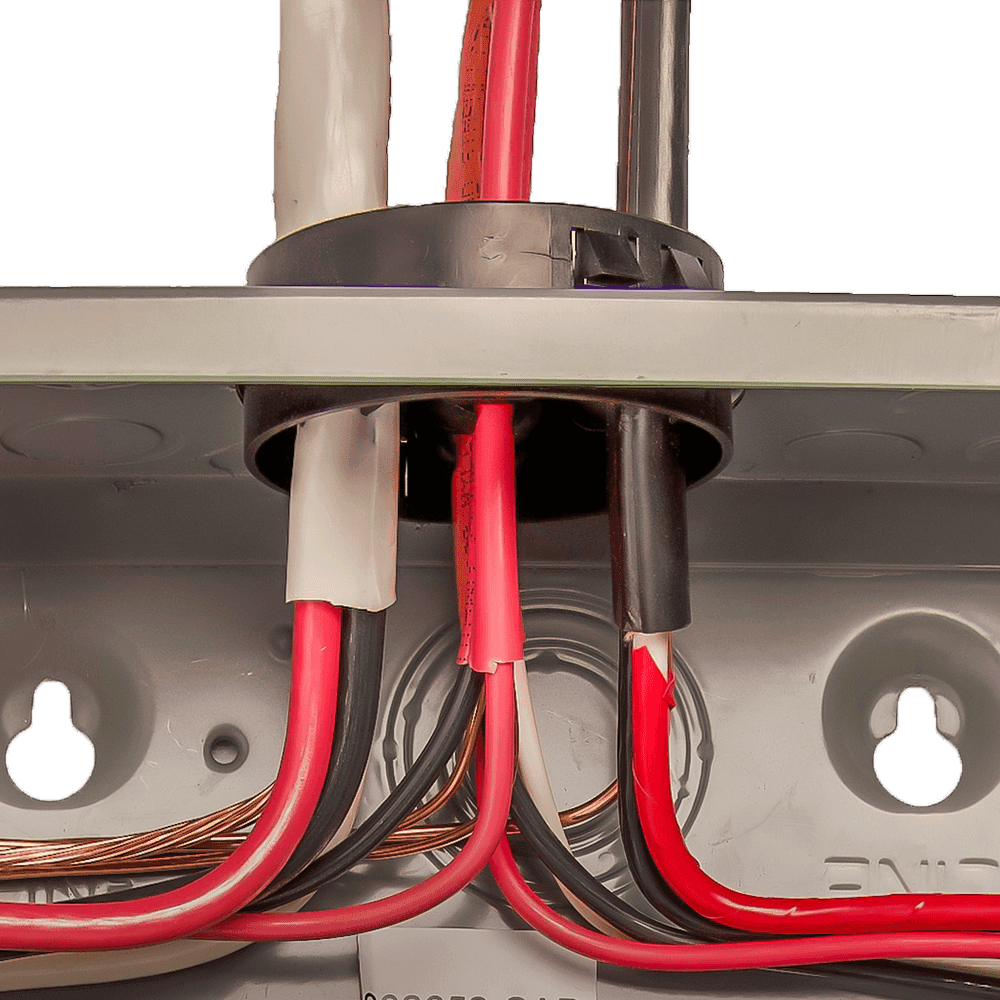

See third picture for cable combinations.
Features:
- Install up to 16 NM cables in a single factory-punched 2.5″ KO.
- Allows for 14/2 through 10/3 cables with break-off tabs for cables sized 8/2 through 6/3.
- Patented design
- Made in the USA
- -40 Degrees Celsius minimum operating temperature
- EFFICIENT ā Cut labor time down by reducing the number of KOs you need to open while also keeping panels clean and making future panel upgrades easier. Wire Waffle is the ultimate wire connector.
- UL/ULC Listed – UL 514B Listed
- UP-TO-CODE ā Wire Waffle is the first connector available to satisfy NEC 312.5(c) ā a commonly failed article of code. This is the only wire connector that can handle more than 6 cables.
More Information
Many states require electrical panels to be located outside. Contractors typically use a 2ā PVC threaded adapter with a bushing when installing these panels. That method does not meet code and fails NFPA 70 fire requirements. Wire Waffle is the only way to make this install code compliant.
Related Products
Featured Videos
Customer Gallery
@MikeHoltNEC
āIf I was gonna run a bunch of cables through to get into a cabinet, simply get the Wire Waffles! It's a beautiful new product!ā
Sean Dawley
āYup love emā
Carter Barns
āI just ordered 5 of them from my supply house and used it for the first time on a panel swap. These old panels, a lot of times, will have ALLLLL the cables coming through 1- 2āMA, which is not up to code. This is a super easy way to bring it up to code quickly and easily! Love these things!ā
Stephen Morris
āMy recent job has panels fed from the bottom and branch circuits pulled in the top. 14 NM-B cables and it worked perfectly!ā
Shannon Miles
āUsed one yesterday for the first time. Could not have gotten all the existing cables into the new service without it.ā
Ted Hunt
āUsed my first one last week.. Im sold. Used it on a panel upgrade and it made my life way easier than normal.ā
Mike Evans
āUsing them today, game changerā
Joe O'Connor
āWorked Greatā
Phil Batterson
āWe love the waffles. We used 2 of them on our basement addition; while the inspectors took a double look at them, they approved (signed-off) on them. Suggestion: Keep the packaging (with UL listing on hand).ā
